CASE STUDY:
High-Speed Video Capture of Flash Using Pulsed Laser Illumination

by Drew L’Esperance, Ph.D., Senior Scientist

INTRODUCTION

Bright flashes of light produced by explosions and sparks present special challenges in high-speed videography due to the flash overexposing the video. Correct exposure for the flash may be achieved by reducing shutter time, stopping down the lens aperture, and by employing filters over the lens. While the exposure may be correct for the flash, other subjects in the frame may be underexposed or too dark for satisfactory analysis.

Typically, the experimentalist who records high-speed video is interested in the dynamics that cause the flash and its consequences, such as the mechanism that triggers a spark or the debris created by the explosion. External illumination is clearly part of the solution for optimum exposure, but flashes are often much brighter than the light provided by most illumination sources, especially within a small field of view during an extremely short event. A promising strategy is to employ pulsed, monochromatic, directional light sources such lasers that take advantage of filters and synchronized camera shuttering to discriminate against light emitted from the flash. Backlit and retroreflective lighting geometries take advantage of small apertures and directionality of the laser beam.

Oxford Lasers FireFLY 500W laser. Photo by Drew L'Esperance, Hadland Imaging.

HIGH-SPEED LASER ILLUMINATION EXPERIMENT

To simulate the photographic effects of an explosion or electrical arc, we recorded video of a Photogenic PL2500 1000W/s Flash operating at full power. The objective was to visualize the glass bulb and internal components before, during, and after the flash event. Video was recorded with a monochrome iX Cameras i-SPEED® 513 ultra high-speed video camera recording 10,000 frames per second and resolution of 1160 x 870 pixels. The camera exposure was 1 microsecond, the minimum setting for the camera. The camera was equipped with a Nikkor 180mm 1:2.8 lens, stopped down to ƒ/5.6.

The subject (Photogenic PL2500 1000W/s Flash) was placed 7 feet away from the camera, and a 40 inches wide white retroreflective screen was placed 4 feet behind the flash unit. The retroreflective screen material was Avery Dennison T-1100 Engineering Grade Beaded Retroreflective film, which is commonly used to make highway signs. The flash bulb was illuminated with an Oxford Lasers FireFLY 500W pulsed GaAlAs diode laser that emits at 808 nanometers. The laser generated 1 microsecond pulses and was synchronized with the camera to pulse at 10kHz. The laser output was conveyed through a 6 feet long by 5mm diameter liquid light guide to a 50mm diameter output coupler containing a 25mm focal length Fresnel lens. The output coupler was placed adjacent to the left of the camera lens and aimed so the flash bulb’s shadow on the retroreflective screen was hidden from the camera’s field of view by the body of the flash unit.

The retroreflective screen reflected the incident laser light back to the output coupler with approximately 2 degrees of dispersion. The camera lens was close enough to the output coupler that it captured a significant fraction of the retroreflected light. To attenuate light from the flash while maximizing laser throughput, a 50mm Edmund Optics 67-916 bandpass filter with center wavelength of 810 nm and 10 nm bandwidth (full width at half maximum) was mounted to the lens with a 72mm to 52mm step-down filter ring adapter.



SUBJECT & EQUIPMENT

Subject: Photogenic PL2500 1000W/s Flash, operating at full power

Camera: iX Cameras i-SPEED® 513 ultra high-speed video camera recording at 10,000 frames per second with 1 µs shutter, resolution: 1160 x 870 pixels (1MP)

Lens: Nikkor 180 mm 1:2.8, ƒ/5.6 aperture

Lens Accessory: 72mm–52mm step-down filter ring adapter to attach bandpass filter to lens

Lens Filter: Edmund Optics 67-916, 810 nm CWL (central wavelength), 10 nm FWHM (full width at half maximum), 50mm Mounted Diameter

Laser: Oxford Lasers FireFLY 500W, 10kHz with 1 µs pulses at 808 nm, placed adjacent to camera

Background: Avery Dennison T-1100 Engineering Grade Beaded Retroreflective Film, white retroreflective screen embedded with catadioptric beads, (51” x 40” highway sign material, engineering grade 1)

Distances:

Camera to subject: 84 inches (7 feet)

Camera to background: 132 inches (11 feet)

Laser: 3.5 inches to left side of lens

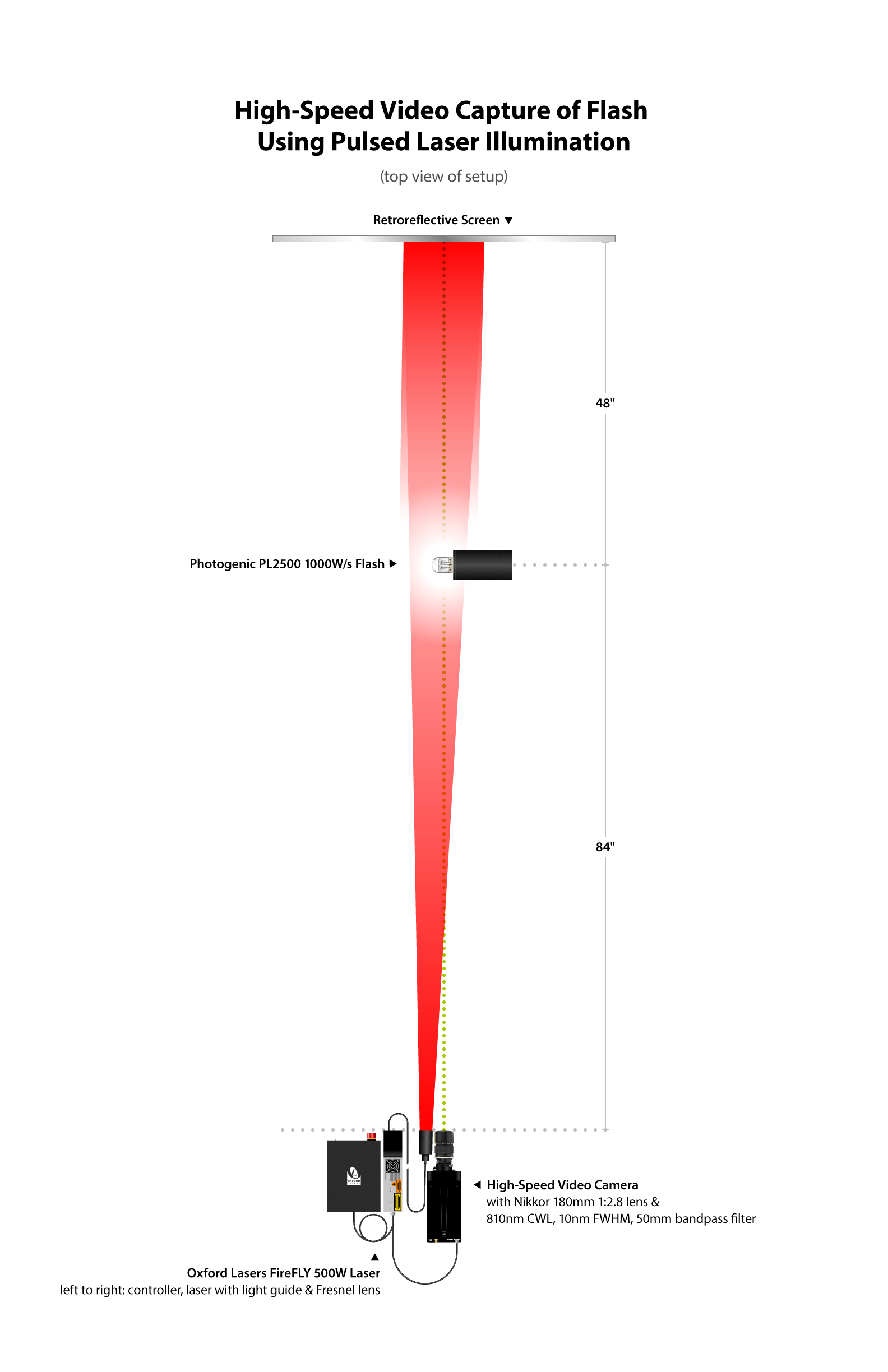

Top view setup illustration of iX Cameras i-SPEED® 513 high-speed video capture of a Photogenic PL2500 Flash, illuminated by an Oxford Lasers FireFLY 500W laser.

High-Speed Video Results

1. Flash Only: Flash is bright, overexposing video, making it impossible to see interior of glass bulb and visualize flash dynamics.

2. Flash with 810 nm Bandpass Filter & Retroreflective Screen: 810 nm bandpass filter suppresses flash during exposure, correctly exposing interior of glass bulb during the brightest period of the flash. However, frames before and after the event are underexposed and do not reveal detail.

3. Flash with 810 nm Bandpass Filter & 808 nm laser: Flash bulb illuminated by 808 nm laser pulsing synchronously with the camera at pulse width equal to 1µs camera shutter speed. Specular reflection of laser on small areas of glass bulb and metallic parts – frames are underexposed and do not reveal sufficient detail when the flash is dim.

4. Flash with 810 nm Bandpass Filter, 808 nm laser & Retroreflective Screen: Retroreflective screen placed 4 feet behind the flash reflects laser beam back to its source (adjacent to the camera lens) during exposure. The resulting bright background makes it possible to expose silhouettes of the glass bulb and its interior, even when the flash is dim.

Oscilloscope trace of Photogenic PL2500 1000W/s flash by Hadland Imaging.

Oscilloscope Trace of Photogenic PL2500 1000W/s Flash

Flash measured with ThorLabs DET36A2 biased Si detector exhibited a near-exponential decay with a half-life of 2.0ms.

Oscillogram of flash intensity versus time. The flash intensity was measured by a ThorLabs DET36A2 biased S1 detector (rise time of 14ns with a 50 ohm load) and the signal was recorded by a PicoScope 3206D USB 3.0 oscilloscope with a bandwidth of 200 MHz. The intensity of the triggered flash reaches its maximum in less than 0.5ms, then decays, diminishing to 50% @ 2.1ms and 10% @ 9.1ms.
