Observation of Acrylic Block Fracture during Impact Compression Using the Hopkinson Bar Method

Shimadzu Application News

No: 01-01146-EN
March 2026

HyperVision HPV-X3 Ultra High-Speed Video Camera

Observation of Acrylic Block Fracture during Impact Compression Using the Hopkinson Bar Method

by Yuki Nishikawa

User Benefits:

• The Shimadzu HyperVision HPV -X3 offers three times the resolution of conventional models, enabling observation of specimen fracture at much higher resolution.
• With a maximum frame rate of 20 Mfps, the HPV-X3 is well-suited for observing high-speed phenomena such as an impact test.

Equipment:

1. Shimadzu HyperVision HPV-X3 ultra high-speed video camera
2. Nikon 105mm macro lens, bellows & close-up ring
3. REL Split Hopkinson Pressure Bar/Kolsky Bar System
4. Oxford Lasers FireFLY 500W Short-Pulsed Laser

Location: The Vault @ Hadland Imaging, R&D Training Center, Santa Cruz, California

Introduction

Understanding materials properties is critical to product design. In particular, for applications such as transportation equipment, where materials may be subjected to impact loads, it is essential to evaluate not only static properties but also impact properties. When subjected to impact, materials may exhibit stress and strain characteristics different from those under static loading, making it essential to quantify these characteristics through impact testing.

The Hopkinson bar method is a well-established technique for impact compression testing. Proposed by B. Hopkinson, this method enables detailed analysis of a material’s impact response and evaluation of its fracture properties by subjecting the specimen to a sudden force using a bar-launching device.

This paper presents an example of an impact compression test on an acrylic specimen with a central circular hole, recorded with an HPV-X3 high-speed video camera (Fig. 2) using the Hopkinson bar method.

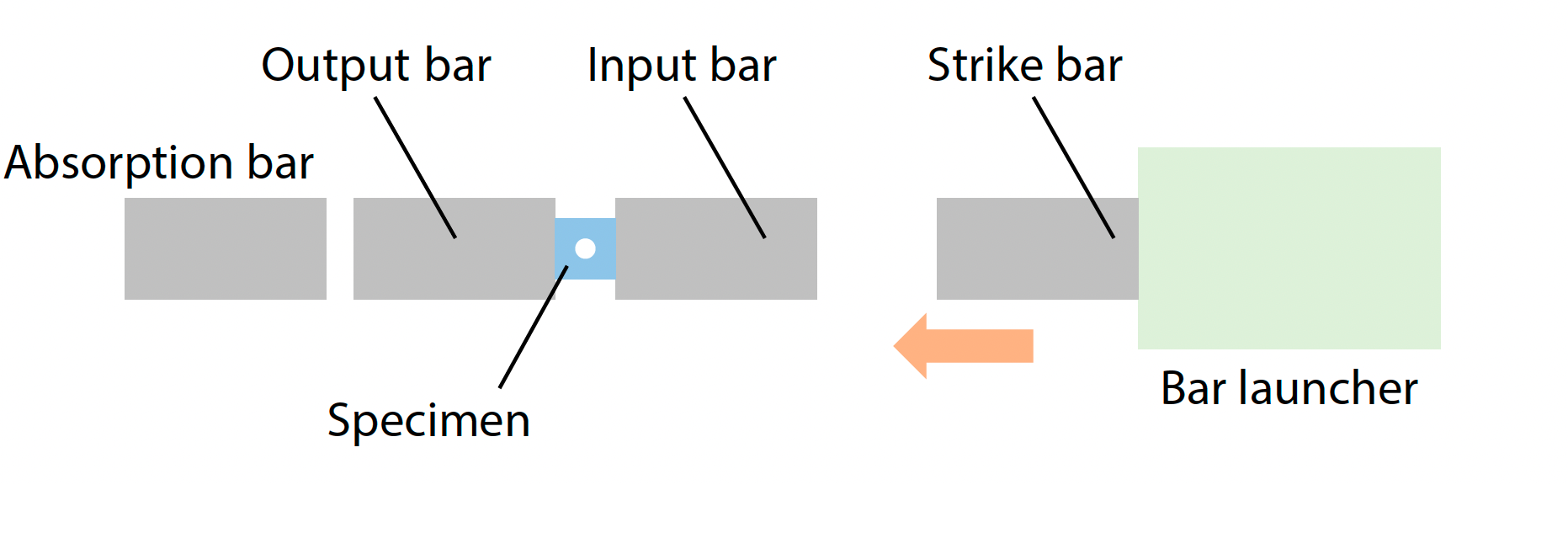

Fig. 1 Schematic Diagram of the Hopkinson Bar Method

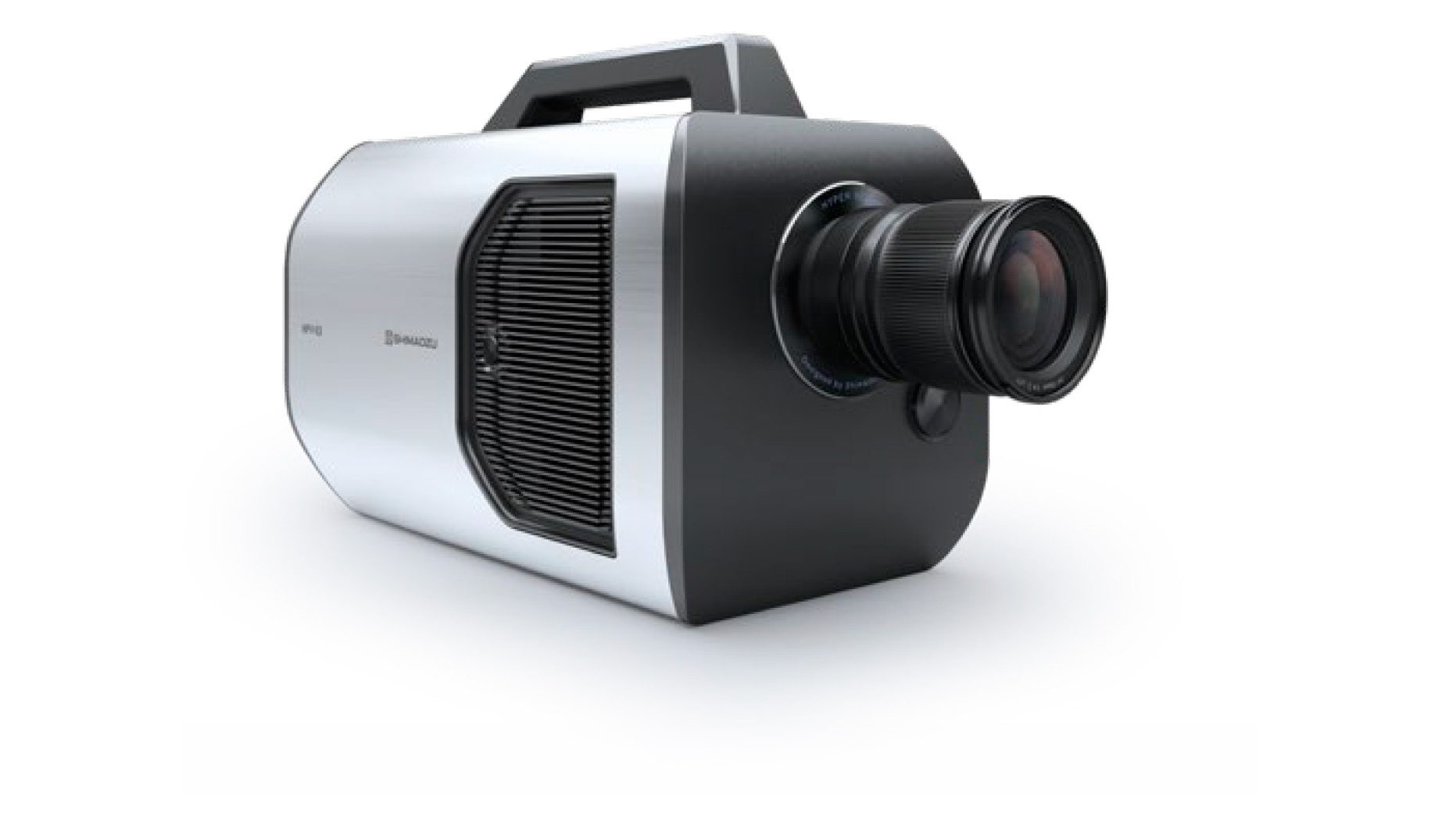

Fig. 2 Shimadzu HyperVision HPV-X3 Ultra High-Speed Video Camera

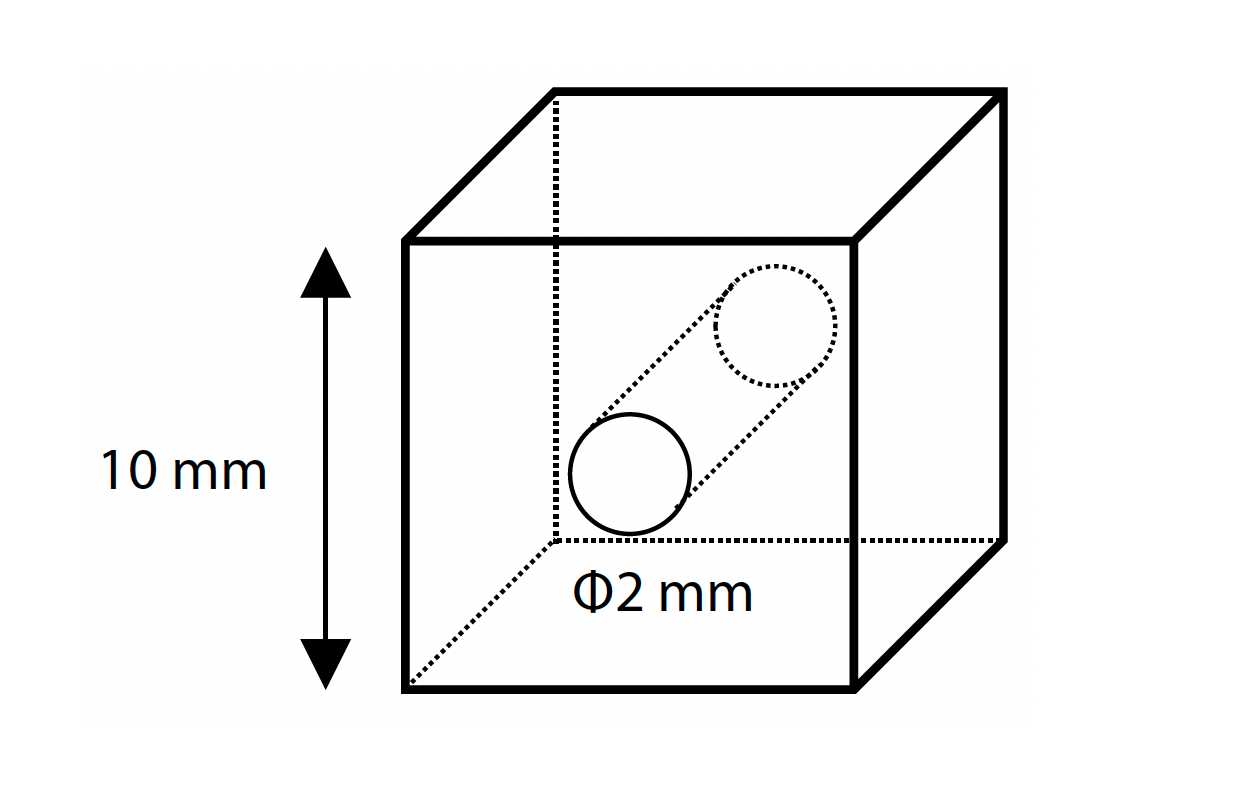

Fig. 3 Schematic Diagram of the Specimen

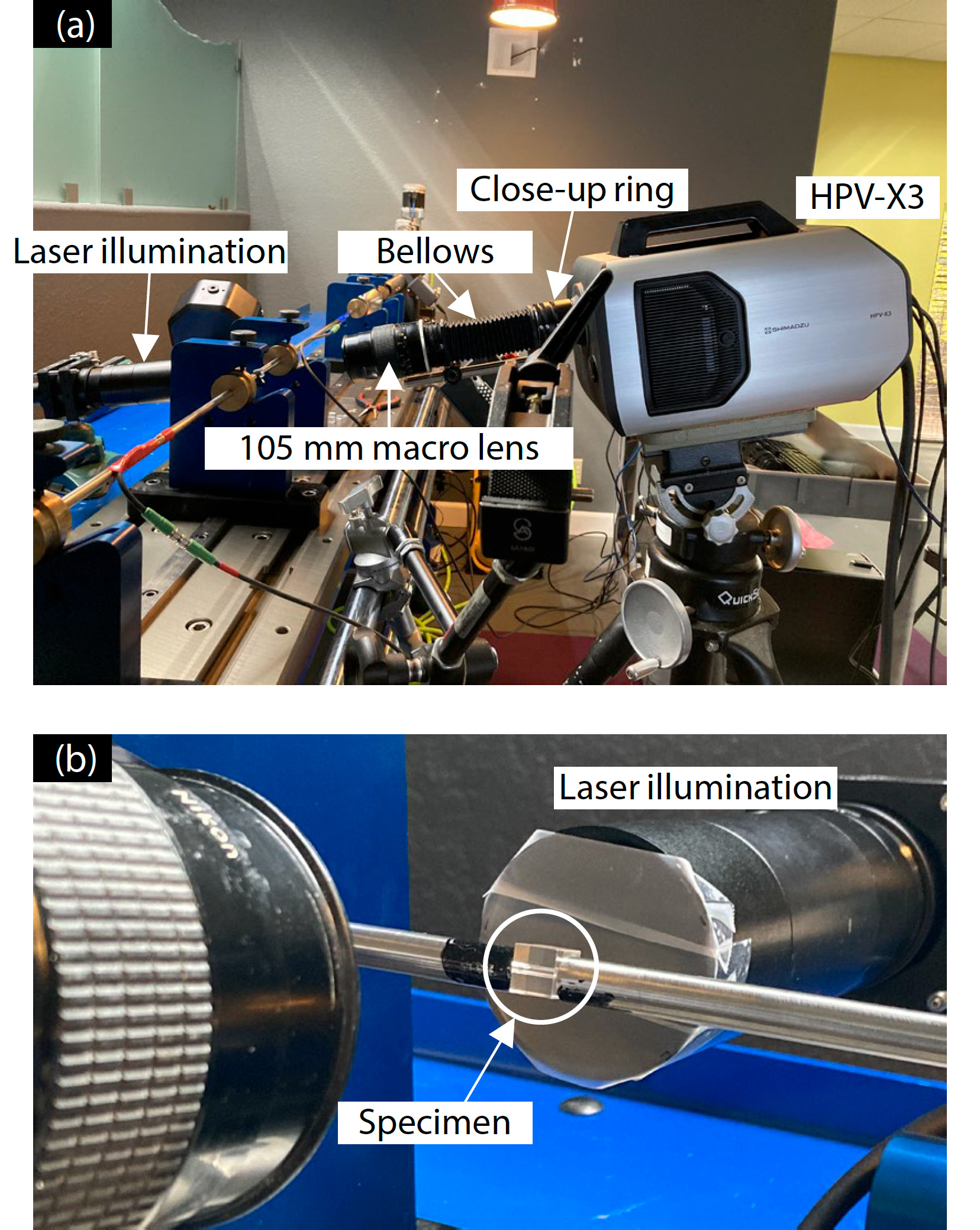

Fig. 4 Imaging Setup

Imaging Results

The initial state of the acrylic specimen in Imaging 1 is shown in Fig. 5. Immediately after the specimen was subjected to impact compression by the input bar, a phenomenon believed to be a stress wave was observed. This phenomenon appeared in the upper left of the specimen in Fig. 5 (1), and subsequently, in (2) and (3), the wavefront was observed to propagate from left to right across the specimen. Later, in Fig. 5 (4), it can be seen that the wave, considered to be a stress wave, propagated to near the center of one side of the specimen. Based on this series of images, the speed of the stress wave was estimated to be approximately 2.7 km/s. Furthermore, in (5), which is 16 μs after Fig. 5 (1), a crack was initiated from the central circular hole of the specimen and propagated to the left, and from (6) to (8), it was observed to extend to both ends of the specimen’s side surfaces.

Next, the state of the specimen just before fracture in Imaging 2 is shown in Fig. 6. The crack propagation from the central circular hole to the left and right was similar to that observed in Imaging 1 (Fig. 5), but in Fig. 6 (1), the hole was compressed from both sides into an elliptical shape. Subsequently, crack propagation in the diagonal direction from the upper left of the specimen was observed. Similarly, crack propagation in the lower right of the specimen was also observed, and finally, complete fracture was confirmed. This fracture process was consistent with that reported in Related Application 3.

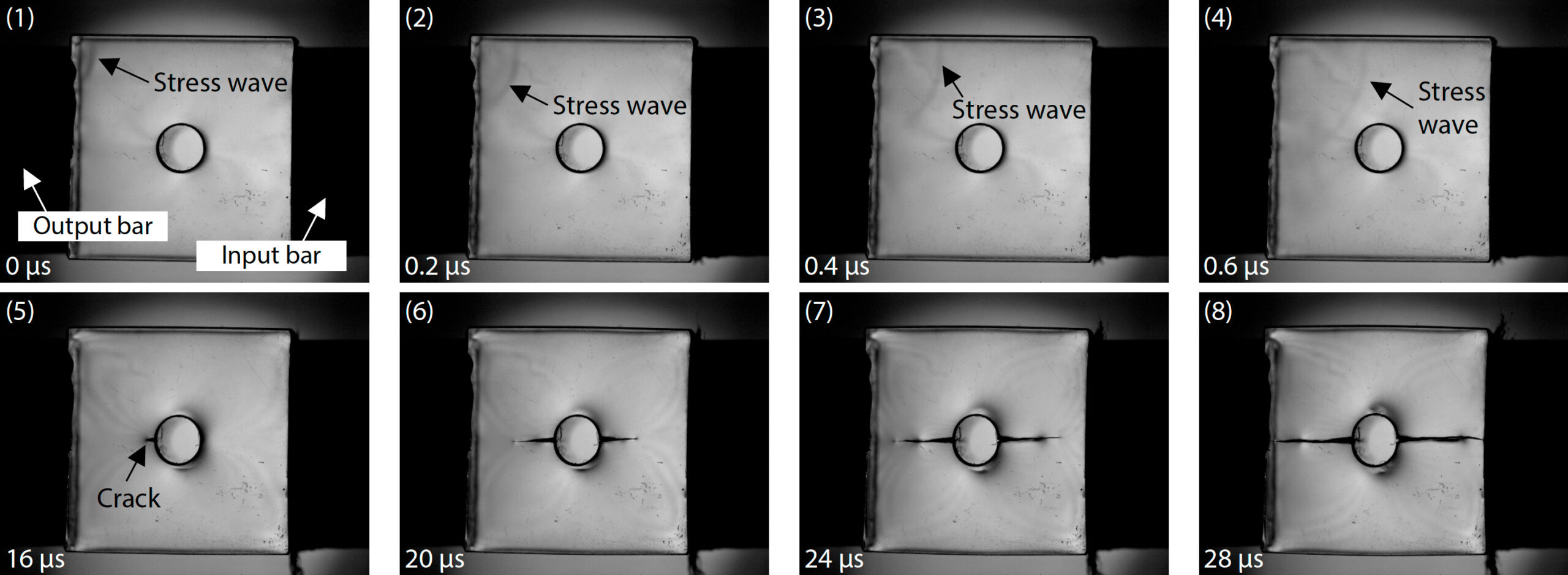

Fig. 5 Observation of Crack Propagation in Acrylic Specimen (Imaging Speed: 5 Mfps)

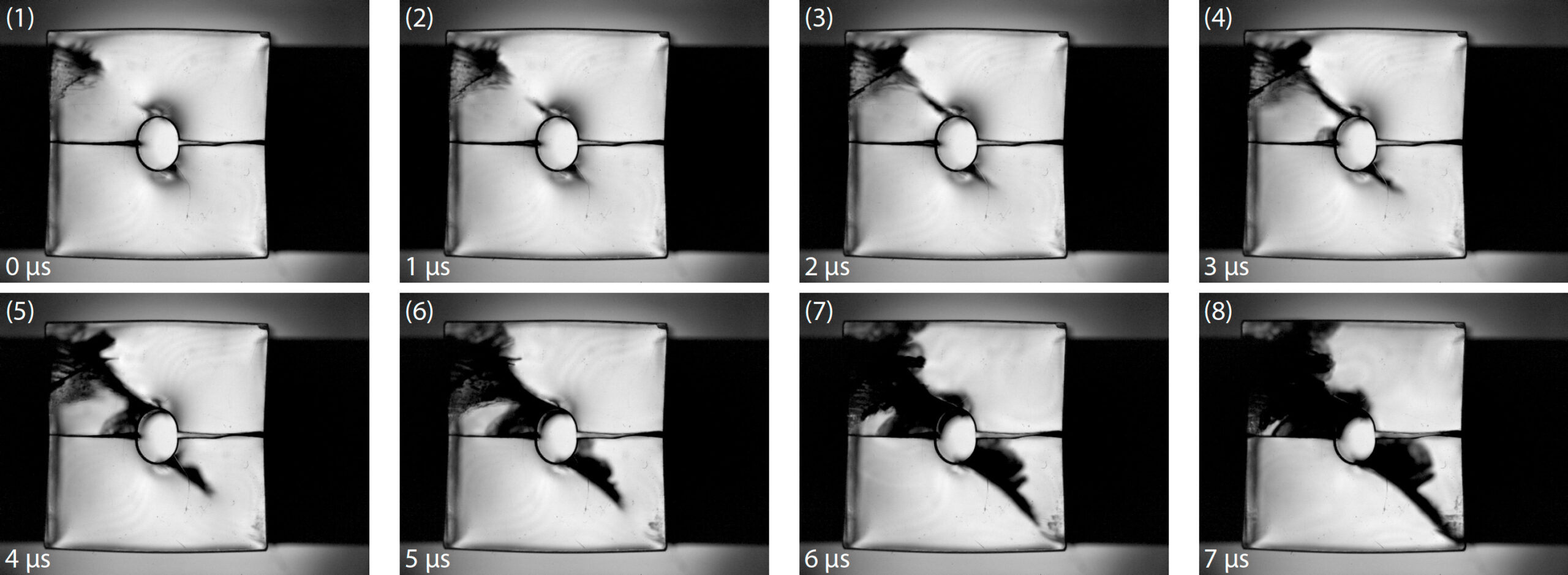

Fig. 6 Observation of Fracture in Acrylic Specimen (Imaging Speed: 10 Mfps)

Conclusion

The impact compression test of an acrylic specimen using the Hopkinson bar method was observed using the HPV-X3 ultra high-speed video camera. Inside the compressed specimen, the propagation of a wavefront believed to be a stress wave was first observed. Subsequently, cracks propagated from the central circular hole toward the left and right surfaces, and finally, diagonal cracks formed, leading to complete fracture. The progress of this series of fracture processes was clearly captured.

The HPV-X3 has three times the resolution of the previous HPV-X2 model, enabling more detailed observation of specimens during impact tests, including the Hopkinson bar method. Furthermore, because fracture phenomena during impact testing occur at high speeds, the HPV-X3, which can record images at up to 20 Mfps, is ideal for capturing them.
